FAME Super Ducha

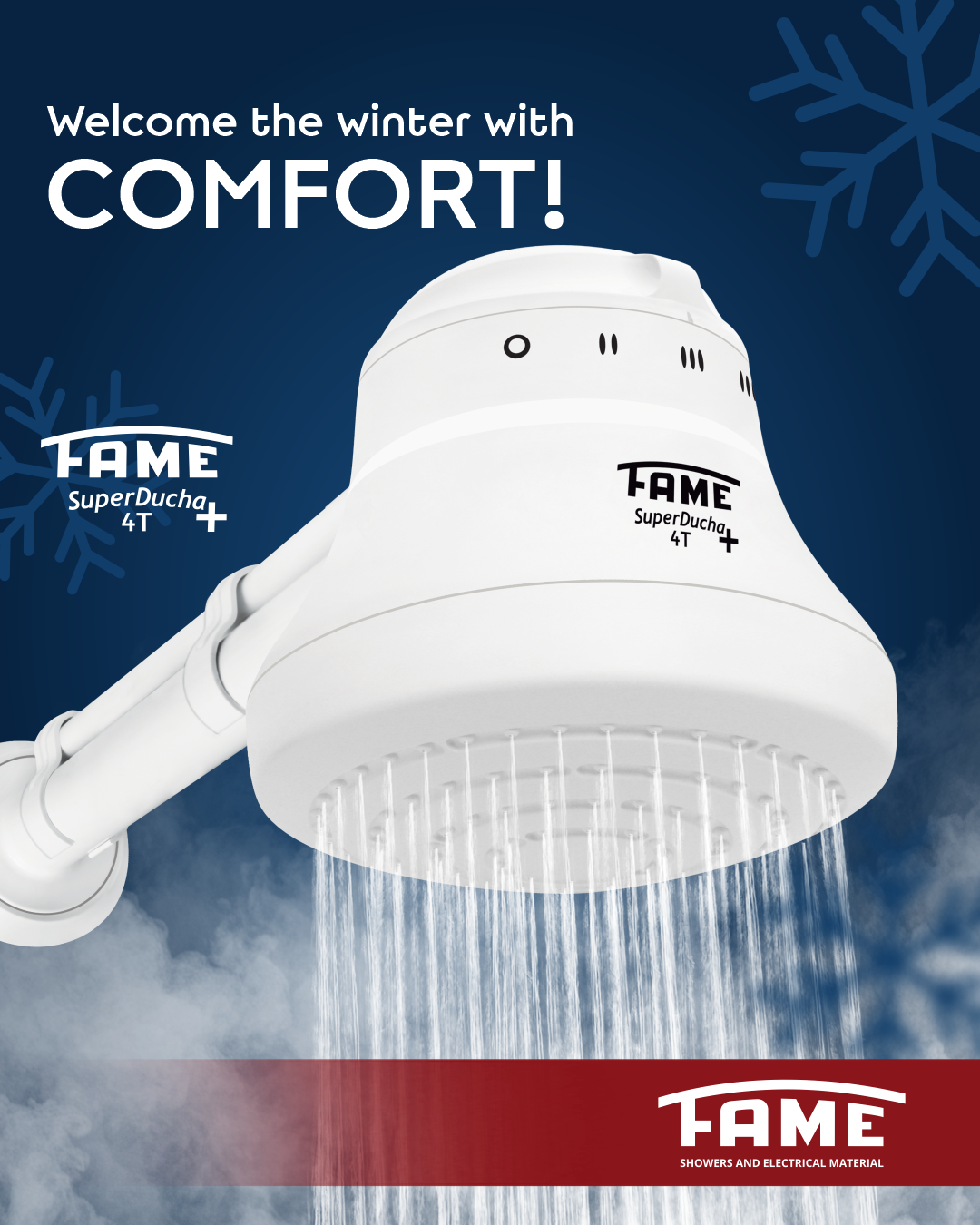

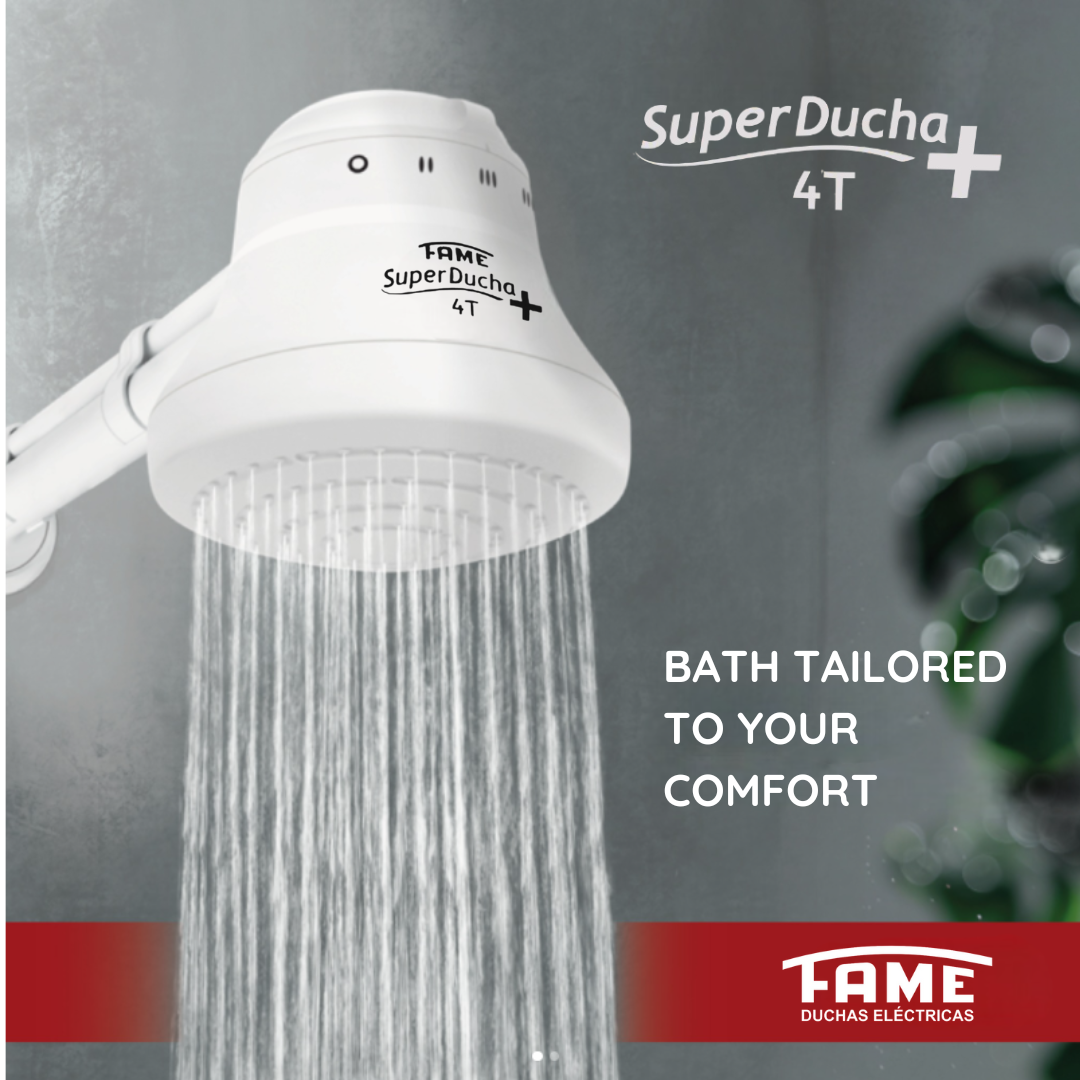

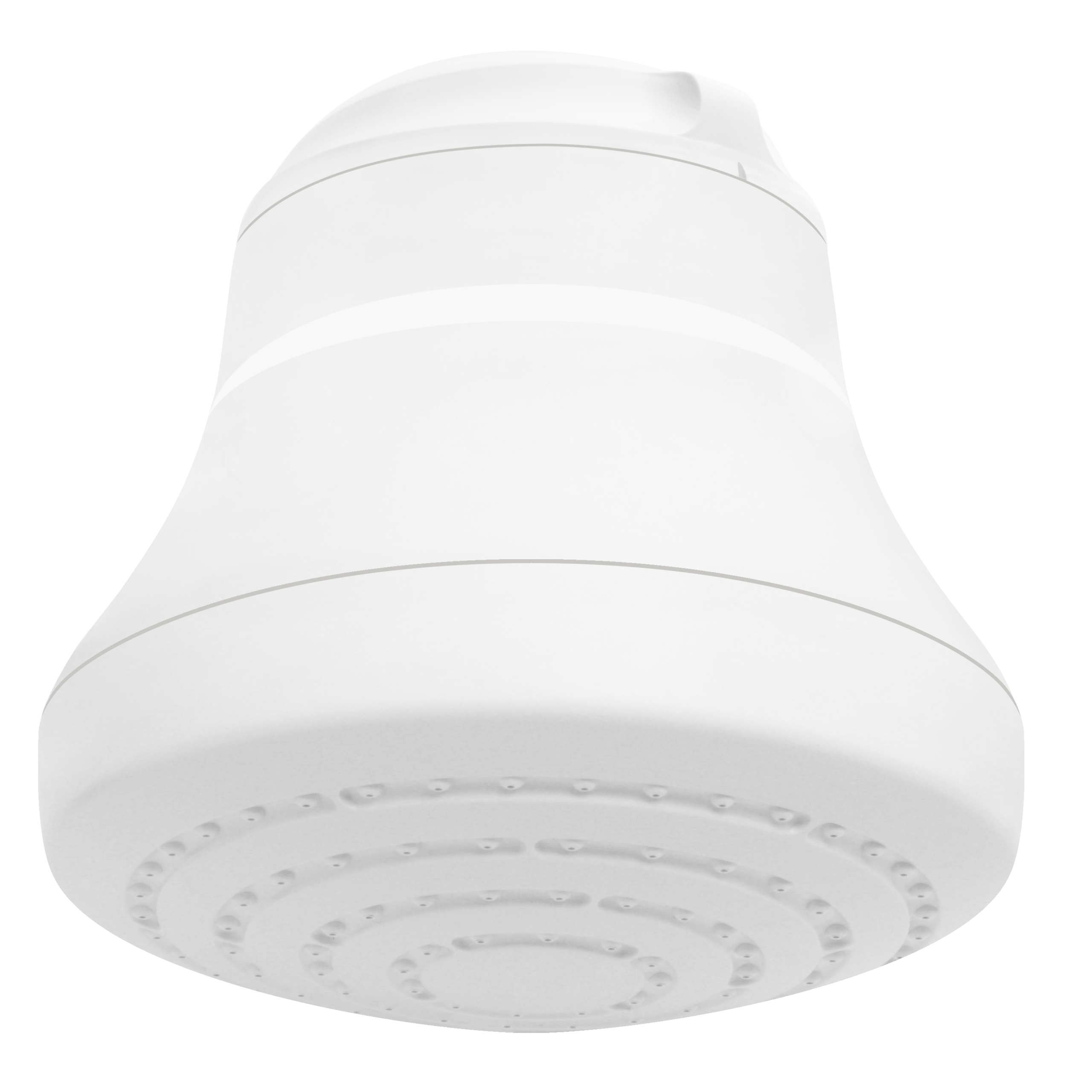

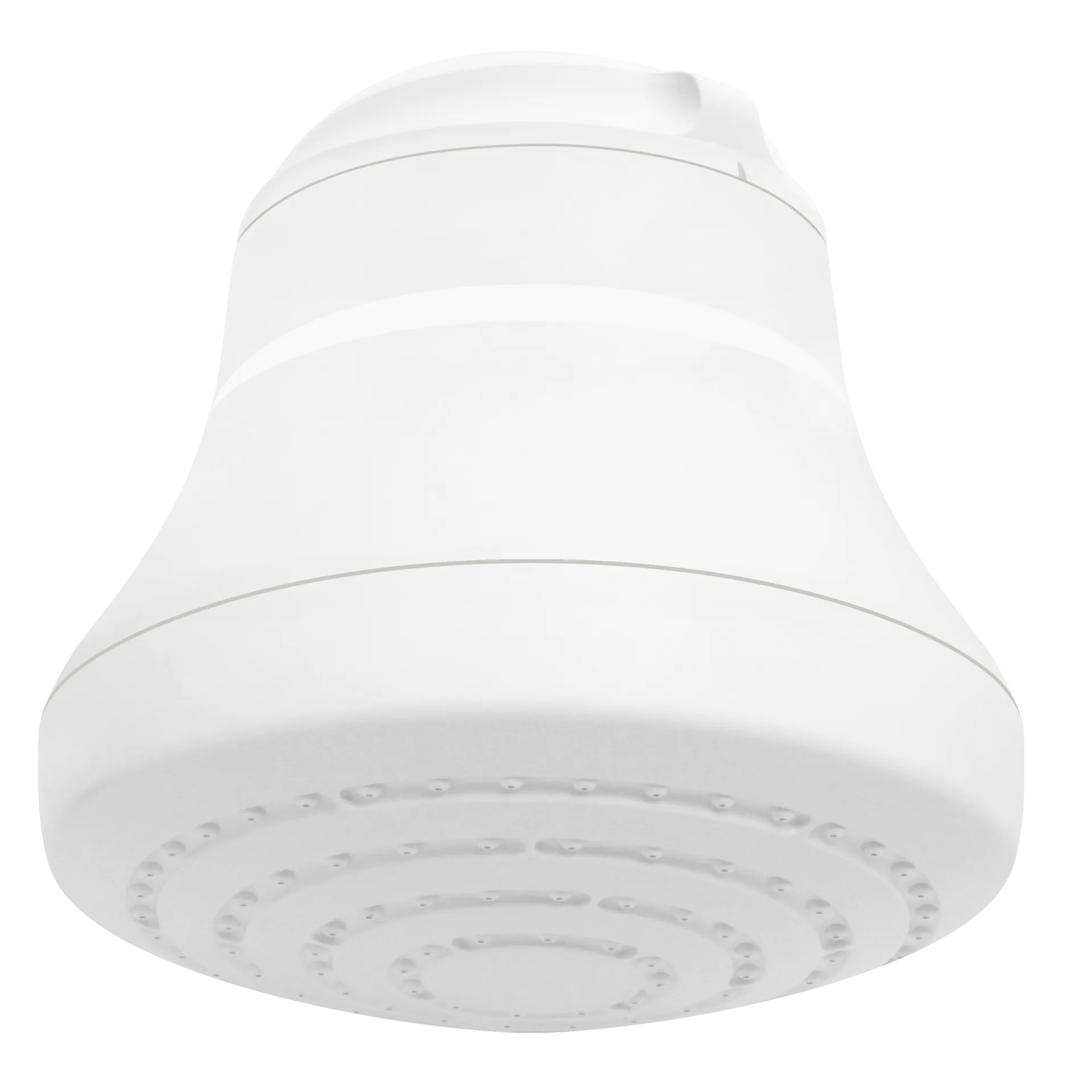

Upgrade your daily shower with the FAME Super Ducha , a practical electric shower designed to give you greater control over your bathing experience. With four temperature settings — Cold, Warm, Hot and Super Hot — you can easily select the level of warmth that suits you.

Its specially designed wide spray plate distributes water over a larger area, helping create a more comfortable and enjoyable shower. The shower also includes a Quick Hand Shower, giving you a convenient concentrated water flow whenever you need it.

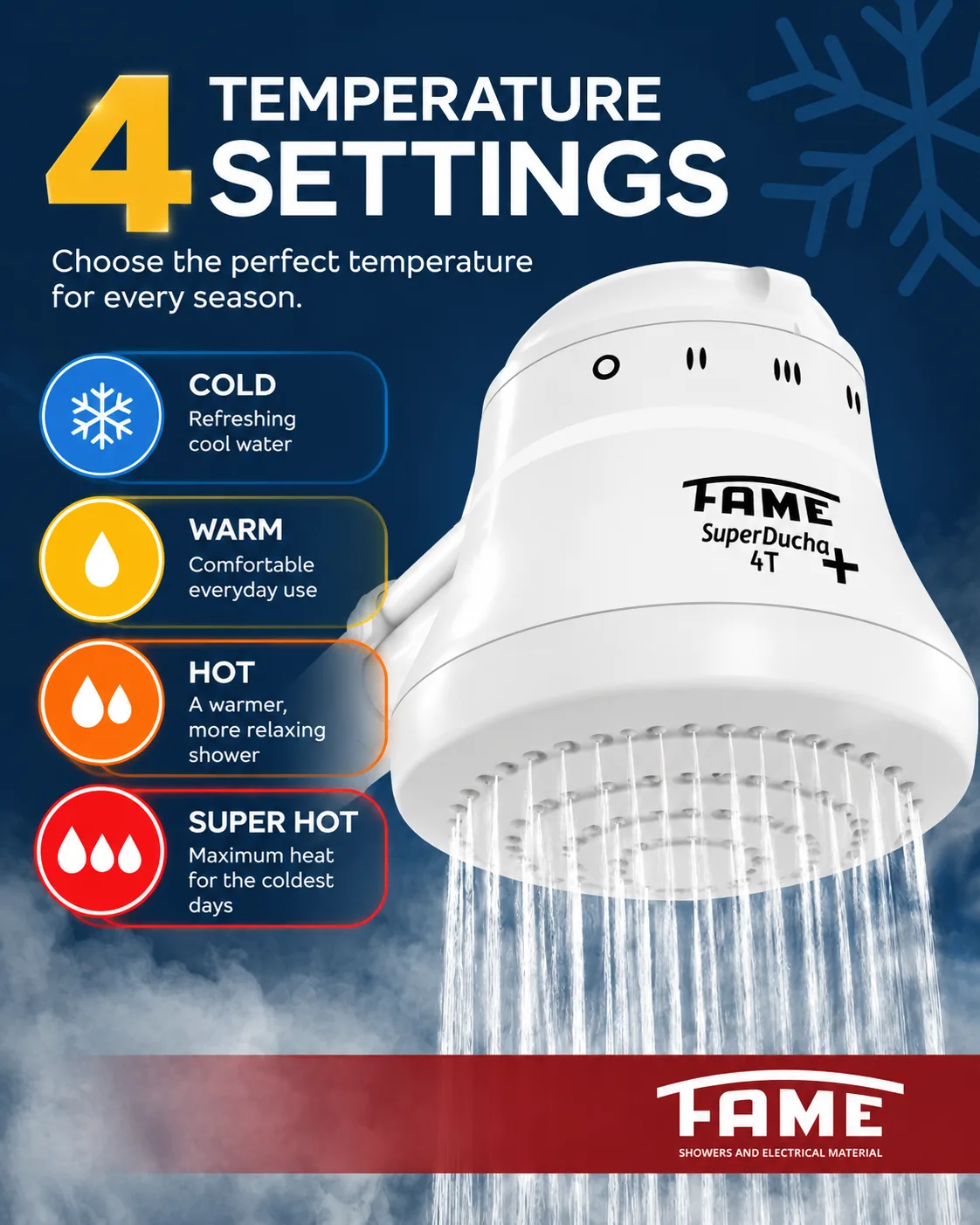

🔥 Four Temperature Settings

Choose between Cold, Warm, Hot and Super Hot to suit different weather conditions and personal preferences. The Warm setting can provide approximately 60% energy saving, making it a practical option when you don't need maximum heating. SUPER DUCHA TECHNICAL

💦 Wide Water Spread

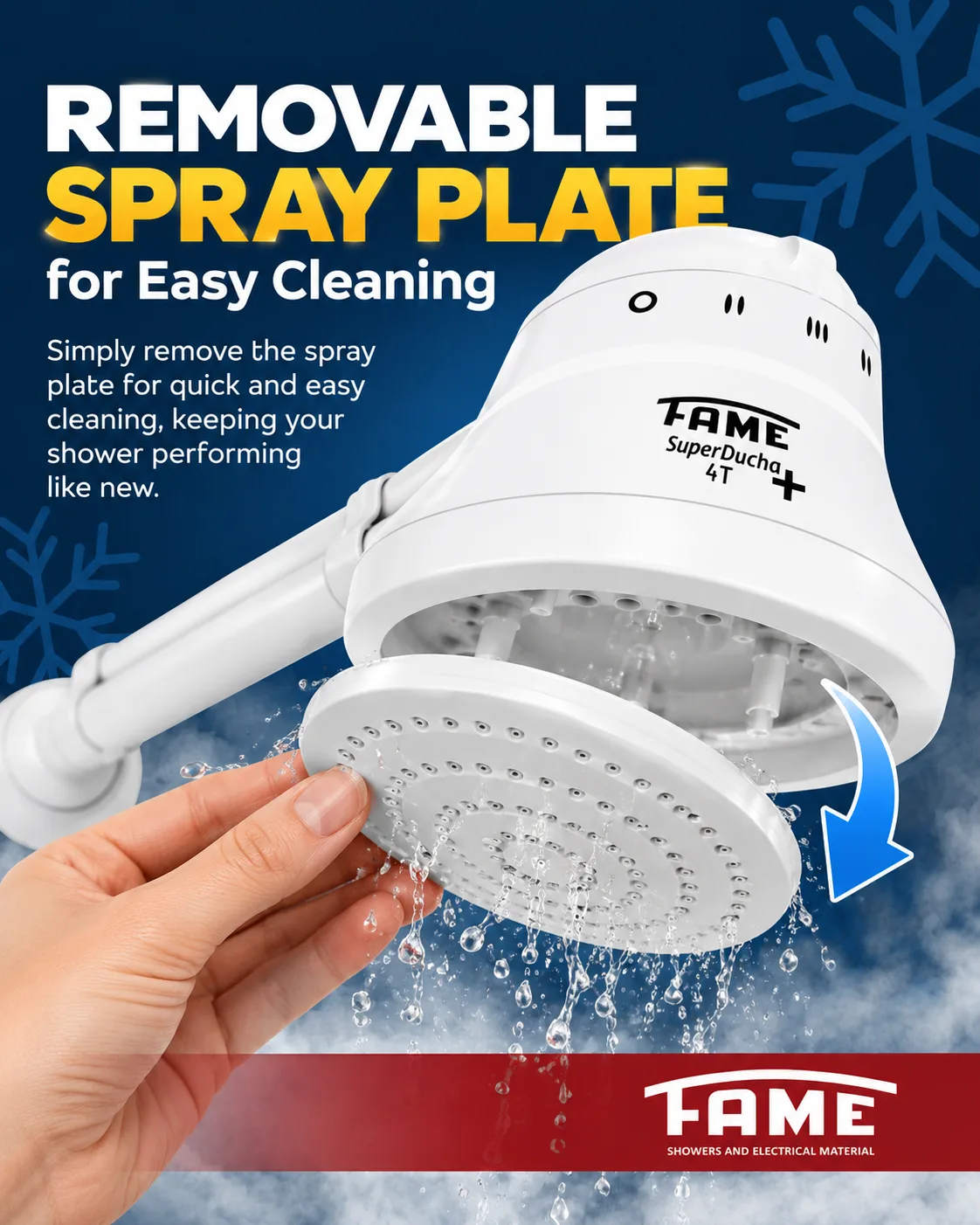

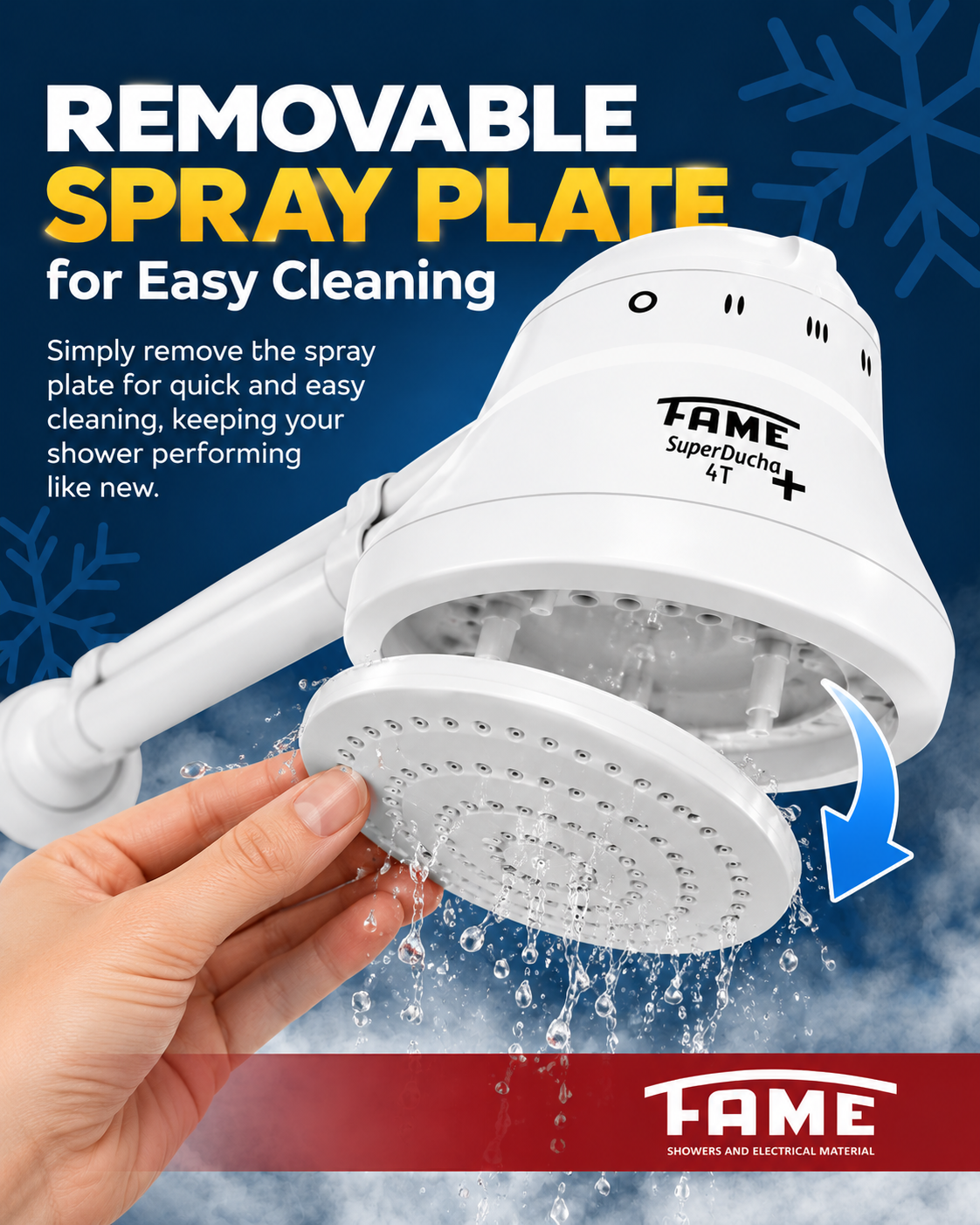

The exclusive spray plate produces a broader water spray, helping provide greater coverage and a more comfortable shower experience. The spray plate can also be removed for easier cleaning.

🚿 Quick Hand Shower

The included Quick Hand Shower provides a concentrated water flow and can be removed from its holder for convenient use.

☀️ Solar Heating Compatible

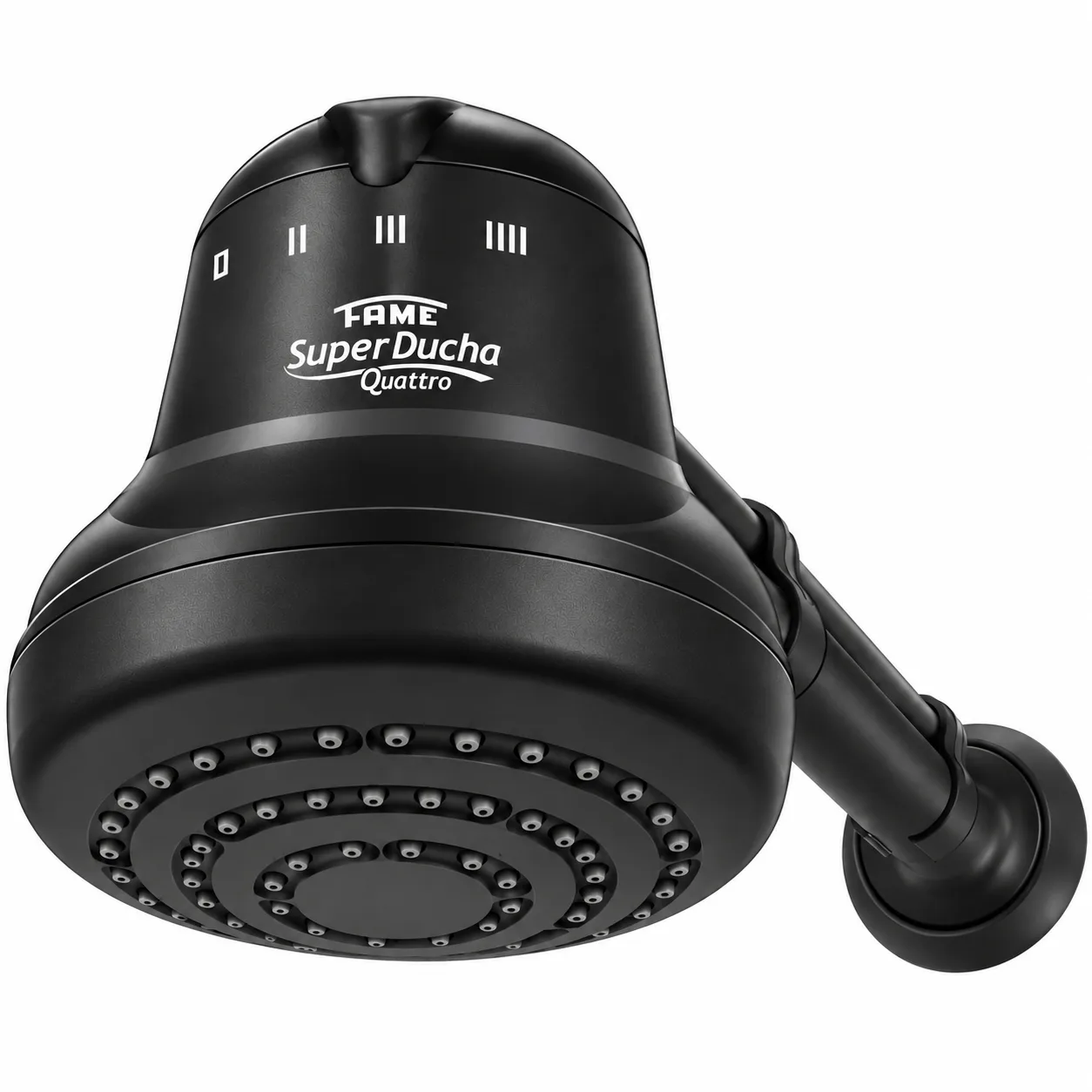

The Super Ducha Quattro is designed to be compatible with solar heating systems, giving you greater flexibility when integrating it into your home's hot-water setup.

🛡️ Designed With Safety in Mind

The shower features IP24 protection, is compatible with a residual-current circuit breaker (RCCB/DR) and requires proper grounding and an exclusive electrical circuit.

💧 Suitable for a Wide Pressure Range

The Super Ducha operates from 13 kPa up to 400 kPa, with a minimum pressure of 8 kPa required to activate the appliance.

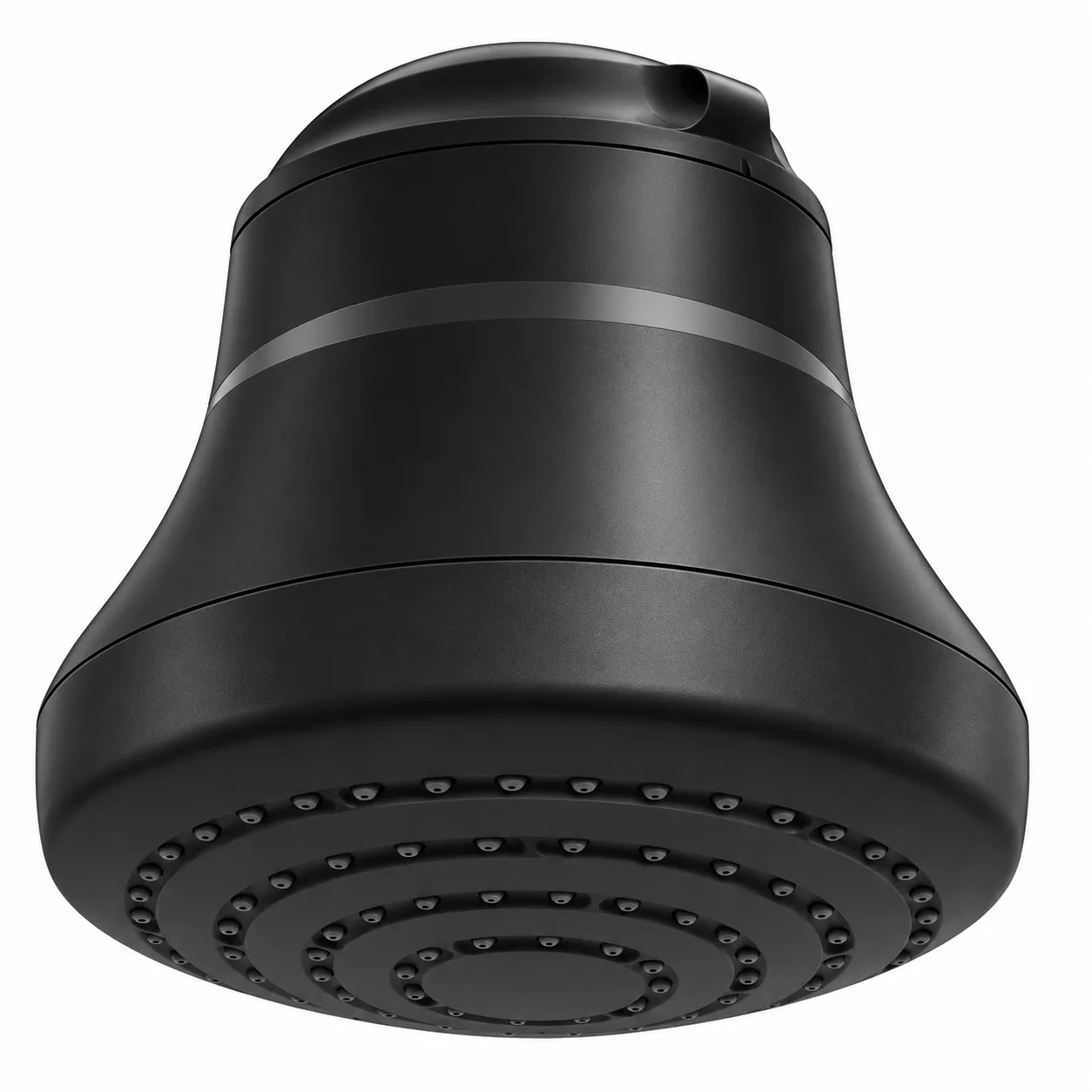

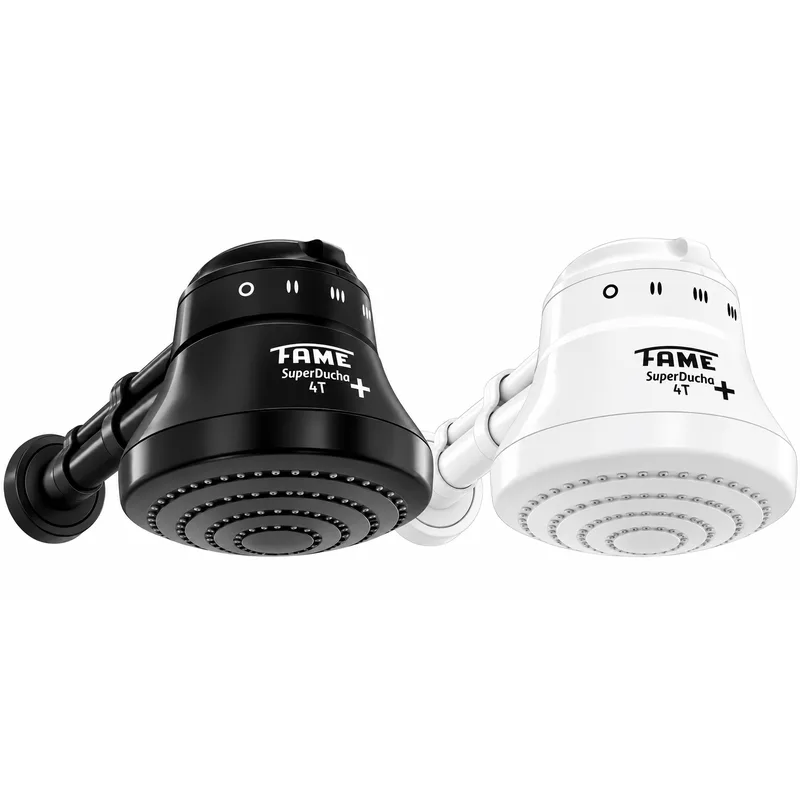

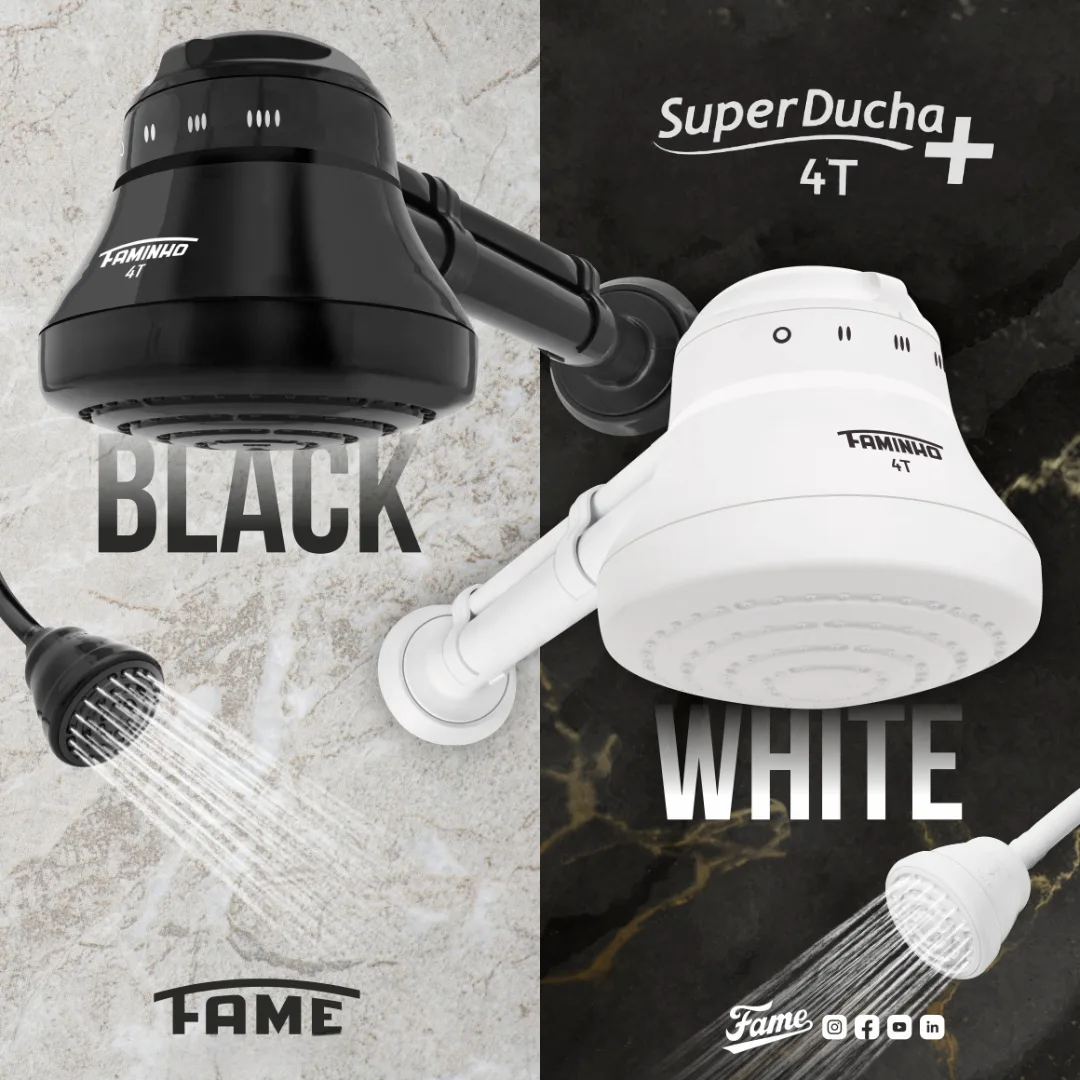

Available in 2 Incredible Colours

Bring a stylish touch to your bathroom with the FAME Super Ducha , available in two modern colour options:

 Black & White

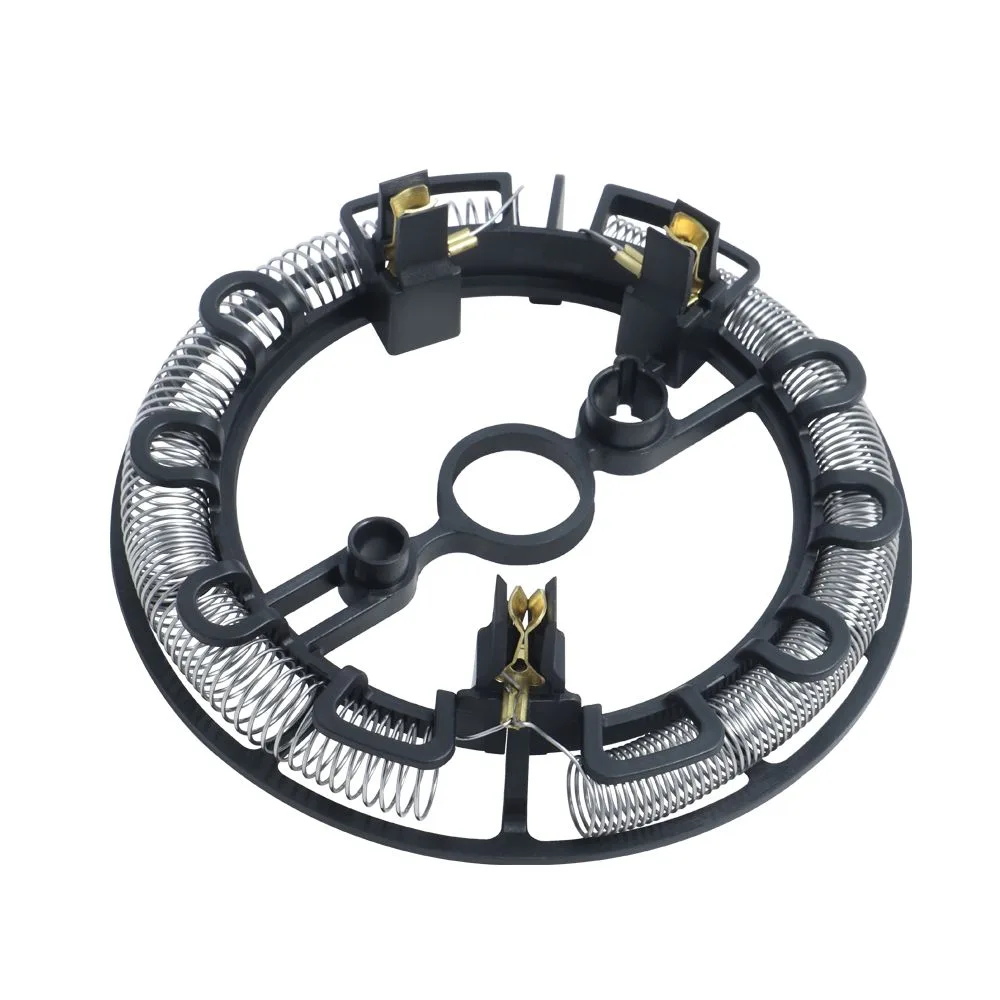

Easy Heating Element Replacement

One of the standout features is FAME's exclusive plug-in heating-element system, designed to make element replacement faster and easier. The dedicated instructions show the element being removed and refitted using guide pins and the correct grounding-wire position.

🔧 Technical Specifications

• Brand: FAME
• Product: Super Ducha Quattro 4T Electric Shower
• Type: Electric Shower
• Temperature Settings: 4 — Cold, Warm, Hot & Super Hot
• Voltage: 127V / 220V
• Maximum Power: 5,400W @ 127V / 6,800W @ 220V
• Warm Setting: Approx. 60% energy saving
• Hot Setting: 3,200W
• Water Connection: 1/2" GAS
• Minimum Operating Pressure: 13 kPa / 1.3 m water column
• Maximum Operating Pressure: 400 kPa / 40 m water column
• Minimum Activation Pressure: 8 kPa / 0.8 m water column
• Protection Rating: IP24
• Water Resistivity: Minimum 1300 Ωcm @ 15°C
• Hand Shower: Quick Hand Shower included
• Hand Shower Holder: Included
• Hose: Included
• Water Spray: Wide water spread
• Heating Element: FAME plug-in/easy-fit system
• Solar Heating Compatible: Yes
• RCCB/DR Compatible: Yes
• Recommended Installation Height: 2.10 m
• Electrical Connection: Exclusive independent circuit
• Grounding: Required

Product Dimensions

• Height: 15.5 cm
• Width: 13.5 cm
• Depth: 17 cm
• Product Weight: 0.54 kg

⚠️ Safety & Warnings

• Professional installation required: Installation should be carried out by a qualified technician/electrician
• Electrical safety: The shower must be connected to a dedicated, independent electrical circuit with the correct cable size and circuit breaker for the specific voltage/wattage model.
• Proper grounding is essential: Always connect the green/yellow grounding conductor to a suitable grounding system. Never use the neutral wire as a ground.
• No plugs or extension leads: Do not connect the shower using a household plug, socket or extension cord.
• Switch off power before servicing: Always disconnect the electrical supply at the appropriate circuit breaker before installation, cleaning, maintenance or replacing the heating element.
• Fill with water before switching on: Allow water to flow through the shower and fill the heating chamber before connecting/switching on the electrical supply. This helps prevent damage to the heating element.
• Check voltage: Ensure the electrical supply voltage matches the exact voltage specified for the shower model. Incorrect voltage can damage the appliance and affect the warranty
• Water pressure: The Super Ducha operates within approximately 13–400 kPa, with a minimum activation pressure of 8 kPa
• Do not modify the appliance: Use only compatible FAME components and replacement heating elements.
• Water and electricity: Never carry out electrical work while the water supply or electrical circuit is live.
• Hot water warning: Water from the shower can become very hot. Take care when adjusting the temperature and supervise children, elderly users and anyone requiring assistance.
• Cleaning: Clean the exterior with a damp cloth. Avoid abrasive cleaning products.
• RCD/DR protection: The current FAME 220V Super Ducha+ specification states that the unit is compatible with an RCD/DR, providing additional protection when correctly installed.
• IP24 protection: The shower is rated IP24, but this does not replace the requirement for correct electrical installation and grounding.
