ROCO 110 Degree 4 Hole Base Plated Cupboard Hinge 0mm

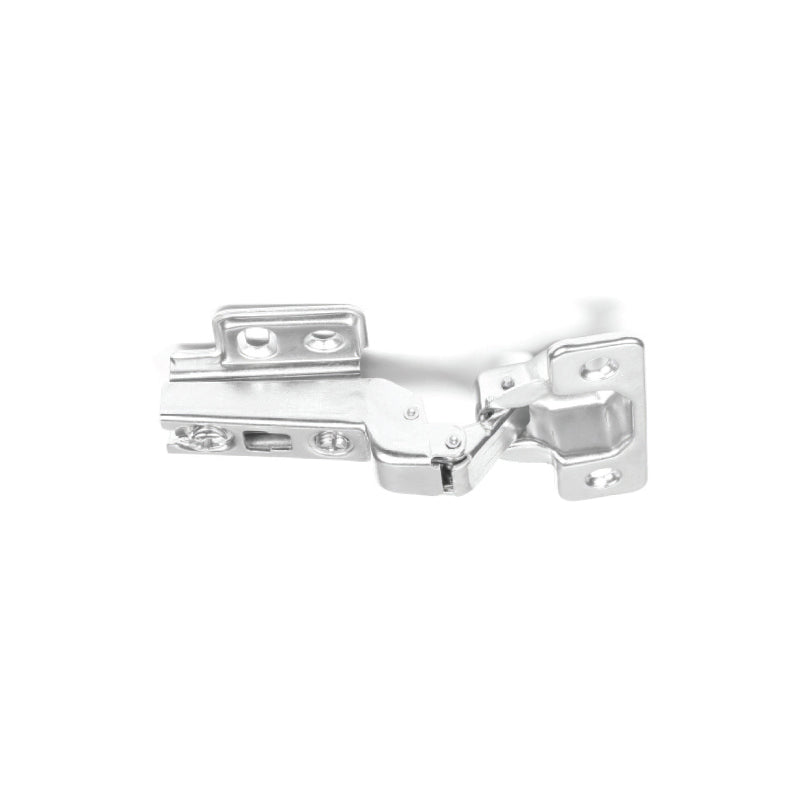

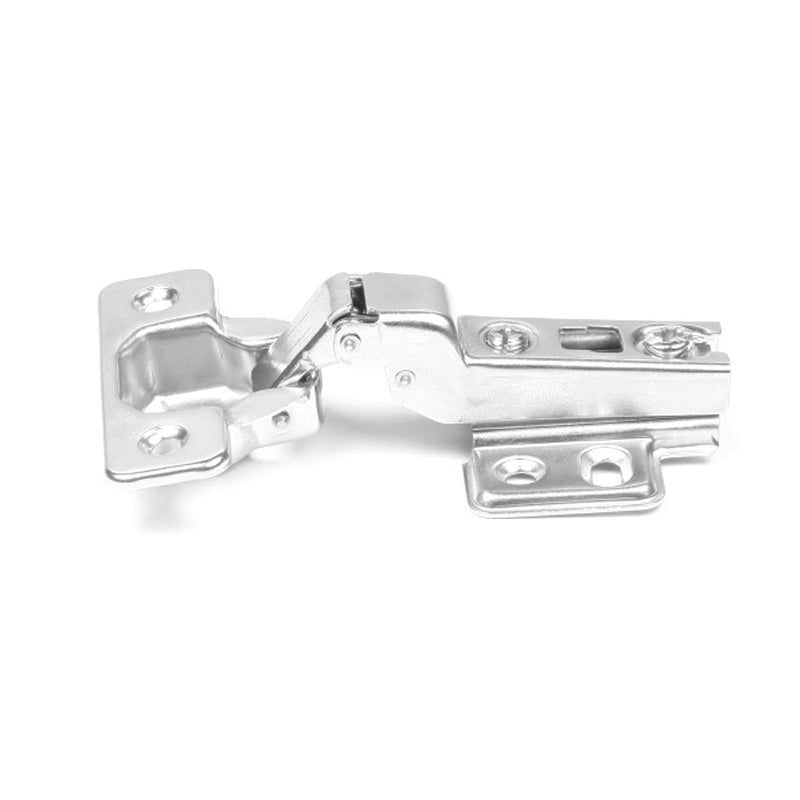

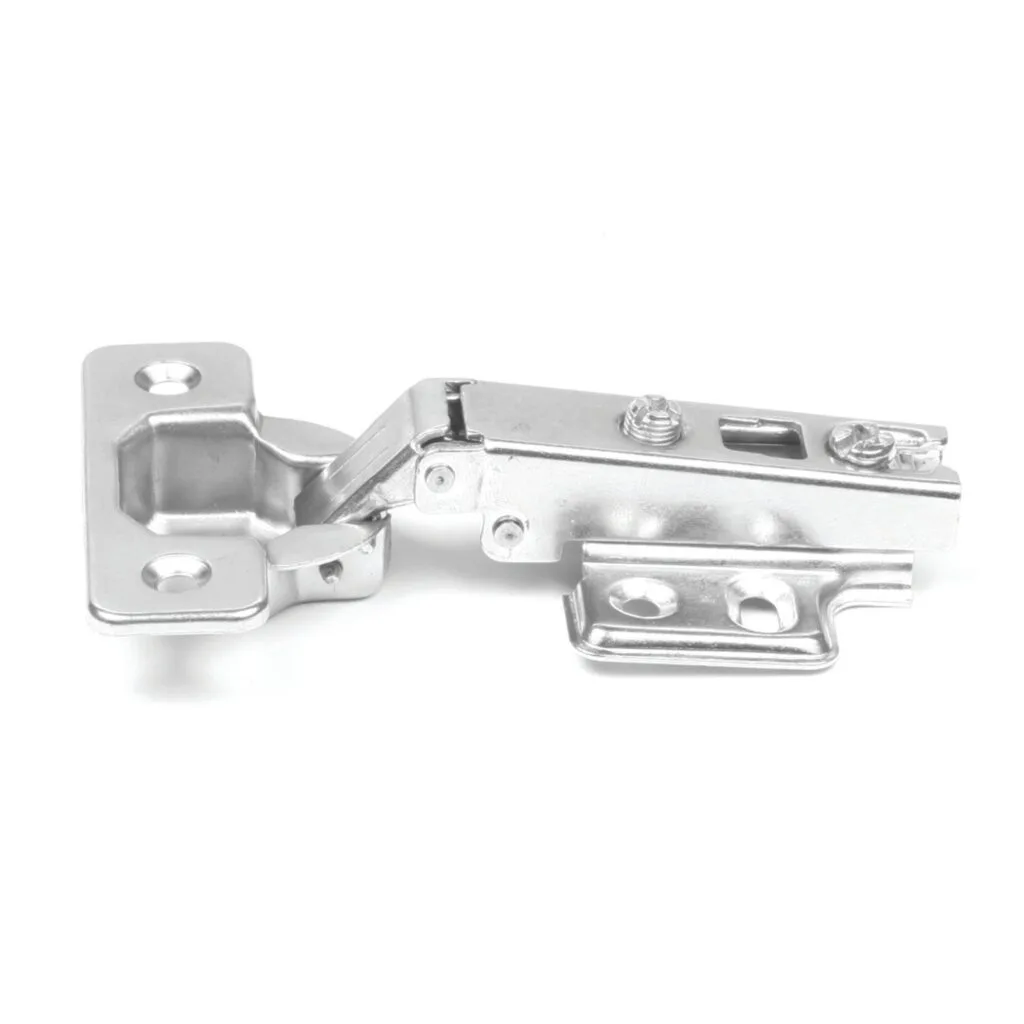

The ROCO 110 Degree 4 Hole Base Plated Cupboard Hinge 0mm is a concealed cabinet hinge opening to a 110 degree angle, supplied with a 4-hole base plate. Its 0mm crank makes it well suited to full-overlay cupboard doors in kitchens and furniture.

Key Features

• 0mm crank suited to a full-overlay door position.
• 110 degree opening for easy access to the cabinet.
• Concealed design hidden inside the closed door.
• 4-hole base plate included for a secure fixing.
• Adjustable fit for bringing doors into alignment.
• Furniture-grade build from a trusted fittings brand.
• Broad application across kitchen and cabinetry work.

Specifications

• Opening angle: 110 degrees
• Crank: 0mm
• Base plate: 4-hole
• Brand: ROCO
• SKU: RCOAFTS145W34
• Barcode: 6009516806797

Typical Uses & Applications

• Full-overlay kitchen doors: hang doors that sit over the carcass edge.
• End cabinets: fit a door that needs to cover the full side panel.
• Wardrobe fronts: hang overlay wardrobe doors on a joinery build.
• Cabinet gable ends: mount a door flush over an exposed end panel.
• Vanity units: fit an overlay door on a bathroom cabinet.
• Storage cupboards: hang overlay doors on utility and hall cupboards.
• Media units: fit full-cover door fronts on a built-in cabinet.

Usage Tip

The 0mm crank sits the door over the carcass edge, so check your overlay before boring the cup hole. Mount the base plate, clip on the hinge and use the adjusters to set an even gap between adjacent doors.

A straightforward hinge for full-overlay doors with a wide, clean swing.

About ROCO

ROCO was formed through the merger of Amalgamated Fasteners and Fittings (Pty) Ltd and Roco Fittings (Pty) Ltd, both established in 1991. For over 30 years it has supplied high-quality fittings to the South African kitchen and furniture industries.

What's in the box:
1 x ROCO 110 Degree 4 Hole Base Plated Cupboard Hinge 0mm
