ROCO 110 Degree Soft Closing 4 Hole Base Plated Cupboard Hinge 9mm
1996 in stock
Fast, tracked courier across South Africa
Unused, in original packaging

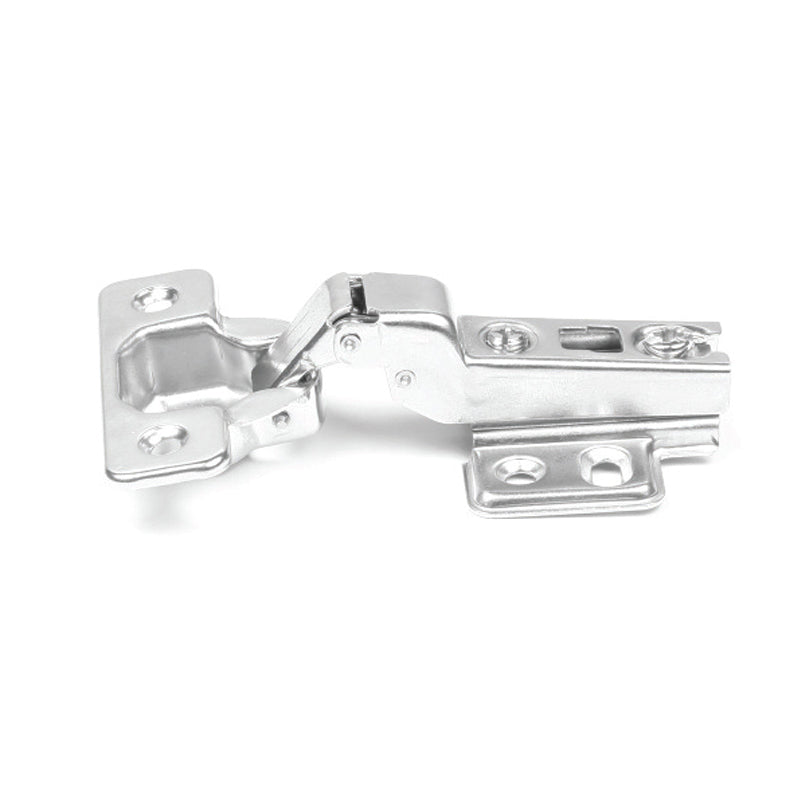

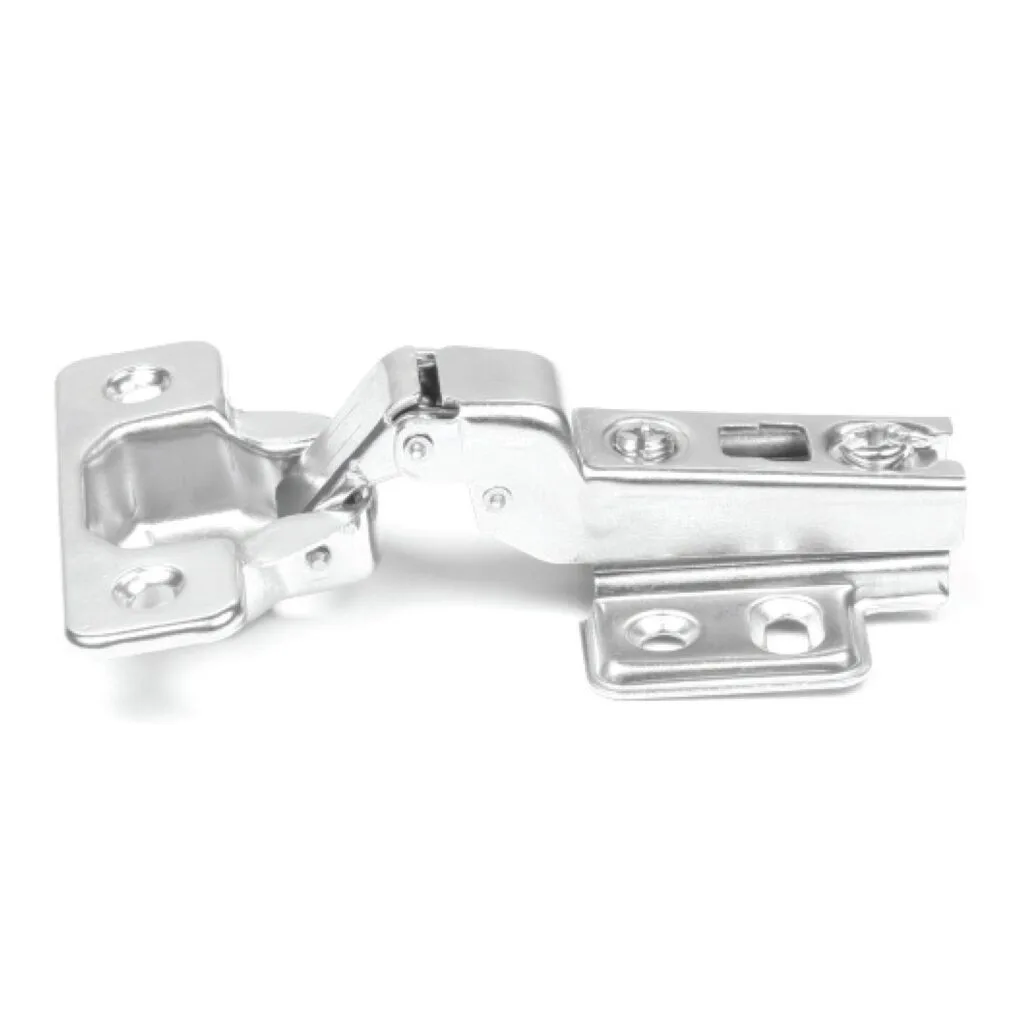

The ROCO 110 Degree Soft Closing 4 Hole Base Plated Cupboard Hinge 9mm is a concealed soft-closing cabinet hinge opening to 110 degrees, with a 9mm crank and a 4-hole base plate. It combines a quiet close with a specific door overlay for kitchen and furniture cabinetry.
Key Features
- Soft-closing action that eases the door shut gently.
- 9mm crank suited to a specific door-to-frame overlay.
- 110 degree opening for easy access to the cabinet.
- Concealed design hidden inside the closed door.
- 4-hole base plate included for a secure fixing.
- Adjustable fit for aligning doors in a run.
- Quieter operation that cuts down slamming.
Specifications
- Opening angle: 110 degrees
- Action: Soft-closing
- Crank: 9mm
- Base plate: 4-hole
- Brand: ROCO
- SKU: RCOAFTS6199
- Barcode: 6009516833496
Typical Uses & Applications
- Half-overlay kitchen doors: hang soft-close doors that share a centre partition.
- Twin-door cabinets: fit two doors onto a shared middle panel with a quiet close.
- Wardrobe centre stiles: hang doors around a central divider.
- Vanity twin cabinets: fit soft-close doors on a partitioned bathroom unit.
- Cabinet dividers: hang doors either side of a fixed upright.
- Media unit centre panels: fit quiet-closing doors around a shared post.
- Storage units with partitions: hang doors on a divided cupboard carcass.
Usage Tip

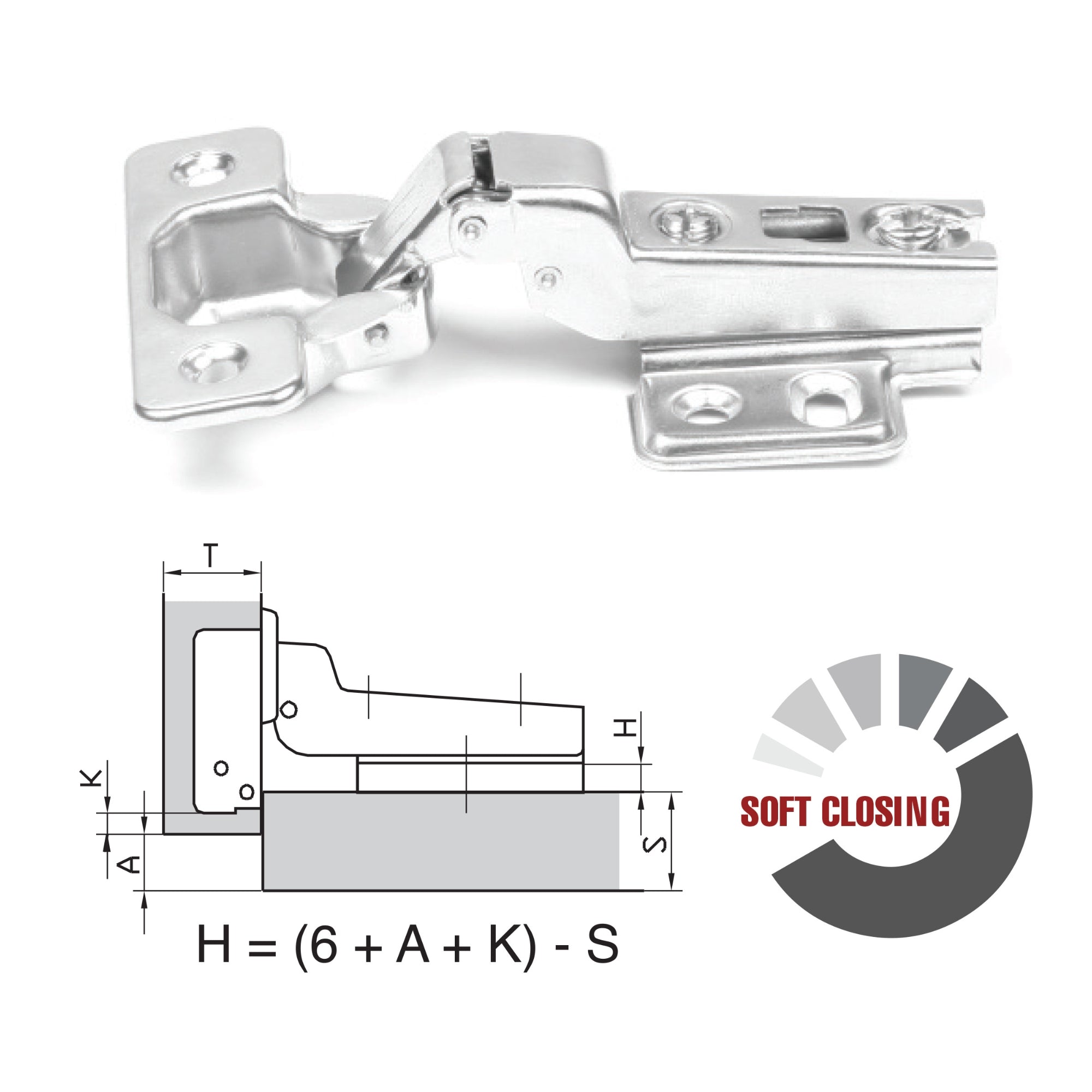

The 9mm crank sets the door position relative to the carcass, so confirm your overlay before boring. Fit the hinge as a standard clip-on and let the soft-close mechanism pull the door home rather than forcing it.
A quiet-closing hinge tuned to a specific door overlay for a neat fit.
About ROCO
ROCO was formed through the merger of Amalgamated Fasteners and Fittings (Pty) Ltd and Roco Fittings (Pty) Ltd, both established in 1991. For over 30 years it has supplied high-quality fittings to the South African kitchen and furniture industries.
What's in the box:
1 x ROCO 110 Degree Soft Closing 4 Hole Base Plated Cupboard Hinge 9mm
| Weight | 0.1 kg |
| SKU | RCOAFTS6199 |
