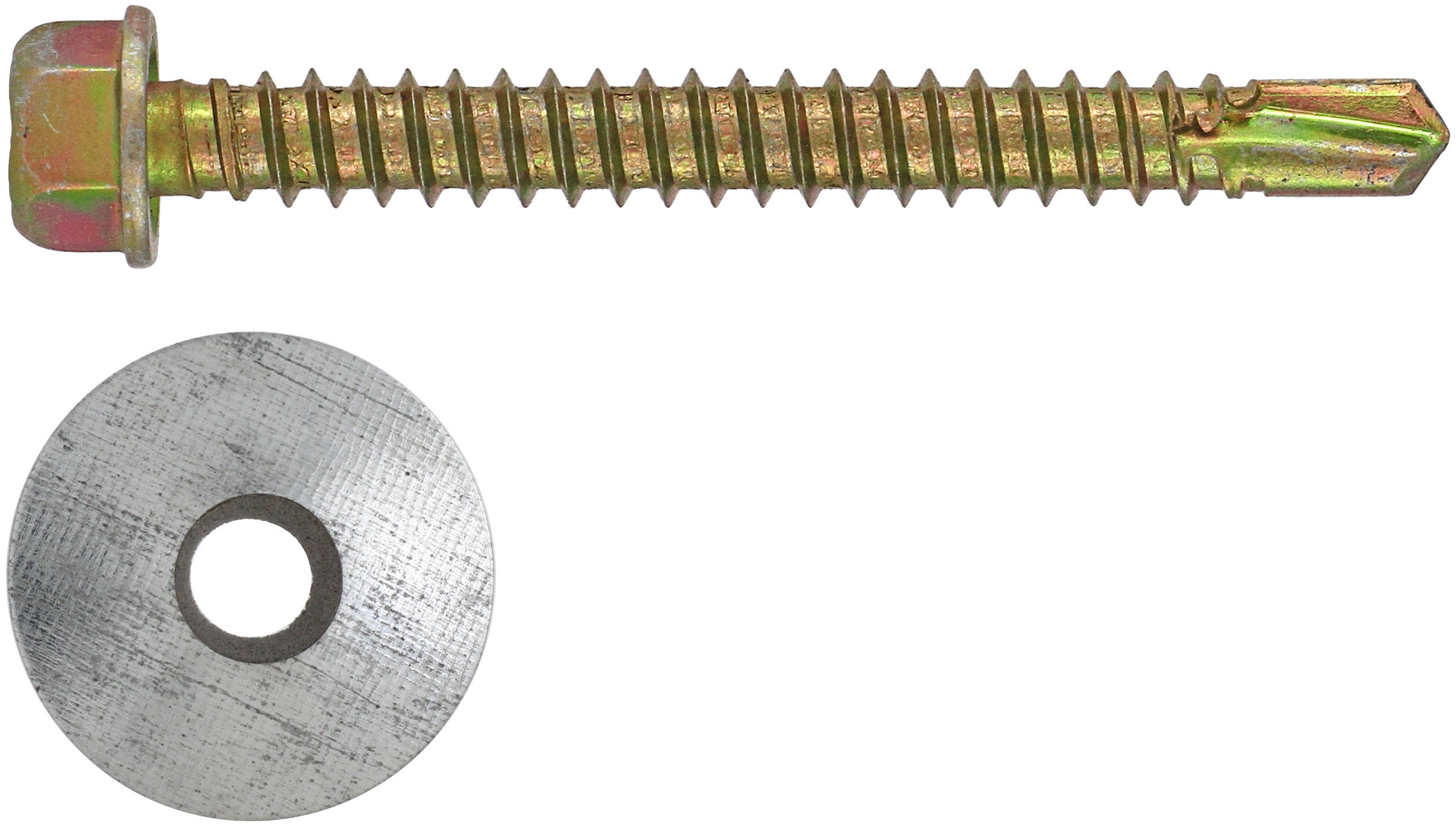

RUWAG Tek Screw & Bonded Washer 5.5mm x 40mm ( Pack of 100 )

The RUWAG Tek Screw & Bonded Washer 5.5mm x 40mm (Pack of 100) is a self-drilling metal fastener supplied with a bonded EVA washer, used to fasten sheets of metal to another material or to join metal to metal. At 40mm, it offers mid-range reach for fixing sheets across a small gap or onto packing.

Key Features

• Self-drilling Tek design needs no pilot hole in metal.
• Bonded EVA washer included on every screw for a sealed fixing.
• Mid-range 40mm length spans small gaps and packing layers.
• Metal-to-metal fixing as well as metal to other materials.
• 5/16 nut setter drive for fast, controlled installation.
• Pack of 100 keeps a fabrication or sheeting job supplied.
• SGS ISO 9001:2015 quality behind the Ruwag range.

Specifications

• Size: 5.5mm x 40mm
• Washer: Bonded EVA washer
• Drive: Requires 5/16 nut setter
• Installation: No pilot hole; run slower than 1500rpm
• Pack quantity: 100
• Brand: RUWAG
• SKU: RWGRF-TEKC5540-100
• Barcode: 6005721066759

Typical Uses & Applications

• Fixing sheeting over a spacer or batten where the screw must bridge a gap.
• Attaching sheet metal to sub-frames on trailers and enclosures.
• Securing cladding through a thin insulation layer to steel.
• Fastening rail and channel sections to steelwork.
• General sheet-metal fabrication needing extra reach.
• Fixing capping and ridge trims that stand off the sheet.
• Mounting fixtures to steel frames across a small standoff.

Usage Tip

On longer screws like this, hold the drill square to the work so the screw drives straight through the gap – a skewed Tek screw cross-threads and leaves the bonded washer sitting proud on one side, breaking the seal.

A mid-length self-drilling fastener for sheets fixed over packing or standoffs.

About RUWAG

Introducing Ruwag, your premier destination for top-tier tools and accessories, offering the best price/quality ratio in the market. Ruwag is SGS ISO 9001:2015 certified – where precision meets affordability.

What's in the box:
100 x RUWAG Tek Screw & Bonded Washer 5.5mm x 40mm
